The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

Dust-proof Tactile Switches RTS(G)Z(M)(H)-6

• Rating：12VDC 50mA

• Travel：0.25mm

• Life：100,000 cycles(260gf) 1,000,000 cycles

• Contact Resistance：100mΩ MAX Initial

• Insulation Resistance ：100mΩ min. 100VDC

• Dielectric Strength：250VAC(50/60Hz)FOR 1MIN

• Operating Force：160gf 260gf

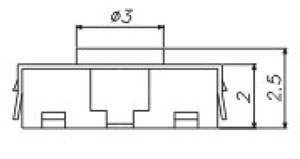

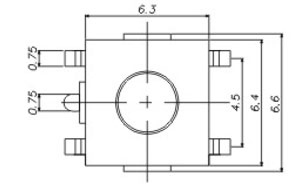

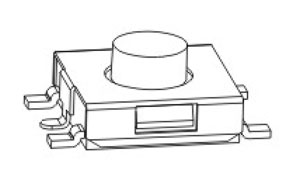

Tactile Switches RTS(G)Z(M)(H)-6 Structure Diagram

Dust-proof Tactile Switches RTS(G)Z(M)(H)-6

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Travel	Life	Download
RTSGZM-61	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	160gf 260gf	0.25mm	100,000 cycles(260gf) 1,000,000 cycles	NULL
RTSZM-61	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	160gf 260gf	0.25mm	100,000 cycles(260gf) 1,000,000 cycles	NULL
RTSZH-63	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	160gf 260gf	0.25mm	100,000 cycles(260gf) 1,000,000 cycles	NULL
RTSGZH-64	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	160gf 260gf	0.25mm	100,000 cycles(260gf) 1,000,000 cycles	NULL
